LC UPC to LC UPC Duplex Single Mode Armored PVC (OFNR) Patch Cable

(No reviews yet) Write a Review
SKU:
ARM-LCU-LCU-SM-002-001M
Availability:
3-5 Day Lead Time
$21.20

Description

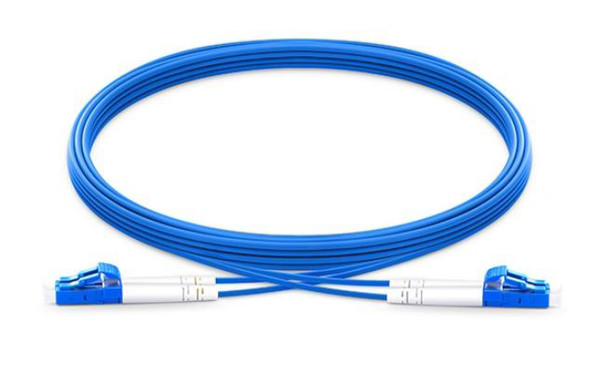

LC UPC to LC UPC Duplex Single Mode Armored PVC (OFNR) Patch Cable

Custom Lengths and Options Available!  Contact Us  for a quote now

10G OS2 9/125 Single Mode LC/UPC to LC/UPC Duplex Armored Fiber Optic Cable

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

Connector A LC UPC Connector B LC UPC
Fiber Mode 9/125μm Fiber Type Duplex
Cable Diameter 3.0mm Cable Jacket Single Armored
Cable Color Blue Cable Material Stainless steel tube, PVC
Minimum Bend Radius (mm) 20D (Dynamic)/10D (Static) Tensile Loads 100~132 lbs
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -40~75°C Storage Temperature -45~85°C

Availability:     Ships in 2-3 days
