FPR26X Fiber Optic Panel (2RU)

(1 review) Write a Review
SKU:
FPR-2/6X
MPN:
FPR-2/6X
Availability:
Usually ships within 24 hours
  • FPR26X Fiber Optic Panel (2RU)
  • FPR26X Fiber Optic Panel (2RU)
$195.00

Description

FPR-2/6X Fiber Optic Panel (2RU)

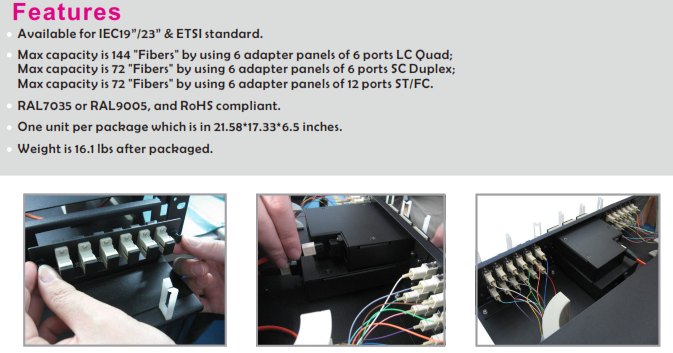

The TXM FPR Series is a family of rack-mounted fiber distribution enclosures that provides splicing and patching of fiber optic terminations using industry-standard LGX adapter plates or MPO/MTP cassettes.  Panels can be ordered empty or pre-configured to your specifications.  All FPR panels feature front- and rear-latching doors and slide-out trays with stops to prevent stress on delicate fibers.  Reversible rack ears allow monting in either 19- or 23-inch racks.

The TXM FPR-2/6X is a Two-Rack Unit (2RU) panel that accomodates six standard LGX adapter plates (sold separately or pre-configured). It features front Plexiglas and rear metal doors to allow easy access.

Technical Specifications


Dimensions:  3.5"(h) x 17.0"(w) x 13.25"(d) / 8.89cm(h) x 43.18cm(w) x 33.65cm(d)

Material:  16 Gauge Powder Coated Steel

Coating:  Electrostatic polyester powder coat paint (available in standard black). Other colors available for bulk orders

Capacity
-The unit can support patching and splicing
-Terminations: (Six) TXM Adapter Plates (see individual plate capacities)
-Splices: Up to 48 single fused fiber splices using 2 FP-SPLC-TRAY-02B splice trays

Product Ordering Information
-Model Number: FPR-2/6X (Unloaded Standard Black Panel)
-Loaded and unloaded adapter plates sold separately

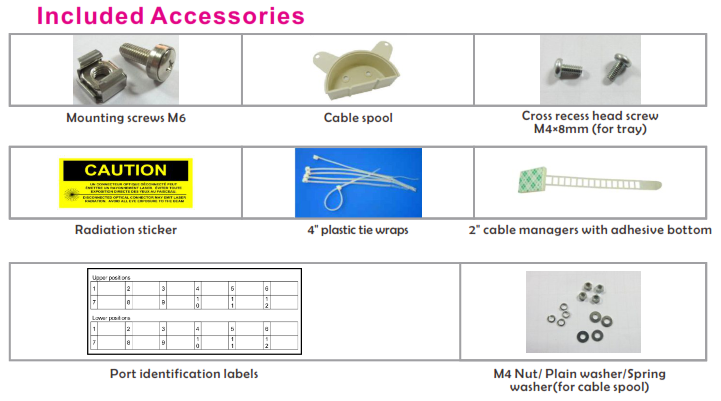

INCLUDES SPLICE TRAY AND SPLICE WHEEL

Download Product Data Sheet HERE

View AllClose

Warranty Information

All materials are warrantied against defect. If you are unsatisfied with our product, please contact us with your concerns and we will submit authorization for a return with refund.
View AllClose

1 Review

  • 5
    great product for the money

    Posted by Unknown on 24th Apr 2017

    well made, the label system is very helpful. i had some LGX adapter plates on hand and they worked perfect in this panel. i also needed more and bought a couple from TXM which are very good quality. I will use them again for the next install project.
