1×4 Fiber PLC Splitter, ABS Box Type, Singlemode, SC/APC - PLC-ABS-1X4SCA01M5

(No reviews yet) Write a Review
SKU:
PLC-ABS-1X4SCA201M5
MPN:
PLC-ABS-1X4SCA01M5
$26.00

Description

1×4 Fiber PLC Splitter, ABS Box Type, Singlemode, SC/APC - PLC-ABS-1X4SCA01M5

TXM offers a variety of Planar lightwave circuit (PLC) splitters, which are an optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from the Central Office (CO) to multiple premise locations.

Pigtailed ABS splitters are most commonly used in the PON networks. They provide complete protection for inner optical components and cable, and are designed for convenient and reliable installations.

With high volume usage, the PLC splitters are mainly used for various connection and distribution products (outdoor fiber distribution boxes) or network cabinets.  Ideal for EPON, GPON, FTTH/FTTX networks

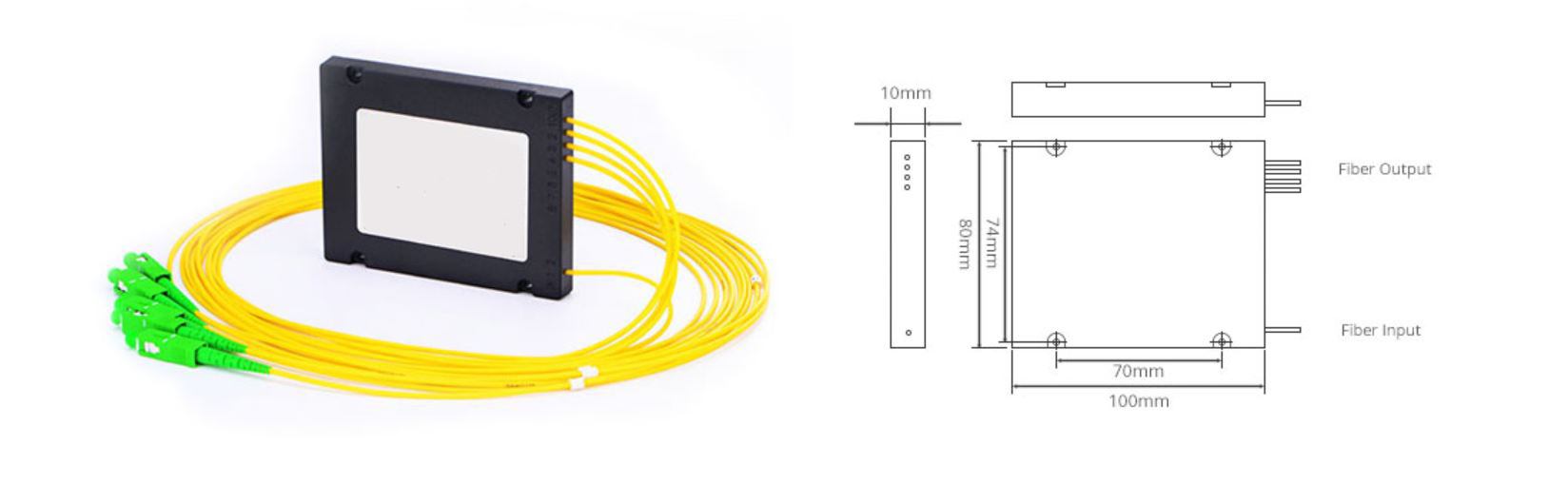

Structure and Dimension


With standalone structure, clear fiber input and fiber out entrance, the ABS PLC splitter can be used directly for splitting using.

2.0mm G.657A1 for Fiber Input/Output Wide wavelength range, excellent channel-to-channel uniformity.

1x2 Splitting, SC/APC Connector

Low insertion loss, Low PDL and High reliability.




Product Details



Package Style

ABS Module

Configuration Type

1x4

Fiber Type

Singlemode G.657A1

Connector Type

SC/APC

Input/Output Fiber Diameter

2.0mm

Pigtail Length

1.5m

Insertion Loss

≤7.3dB

Return Loss

≥50dB

Loss Uniformity

≤0.8dB

Directivity

≥55dB

Polarization Dependent Loss

≤0.3dB

Temperature Dependent Loss

≤0.5dB

Wavelength Dependent Loss

≤0.3dB

Operating Bandwidth

1260~1650nm

Operating/Storage Temperature

-40~85°C

Dimensions (HxWxD)

0.39"x3.94"x3.15" (10x100x80mm)
